1,Curve Lock,Curved Installation
2,Front and Rear Service Design 3,Cabinet can be stacked
4,Corner Protector
5,IP65 Dustproof And Waterproof
6,Lightweight and Thin

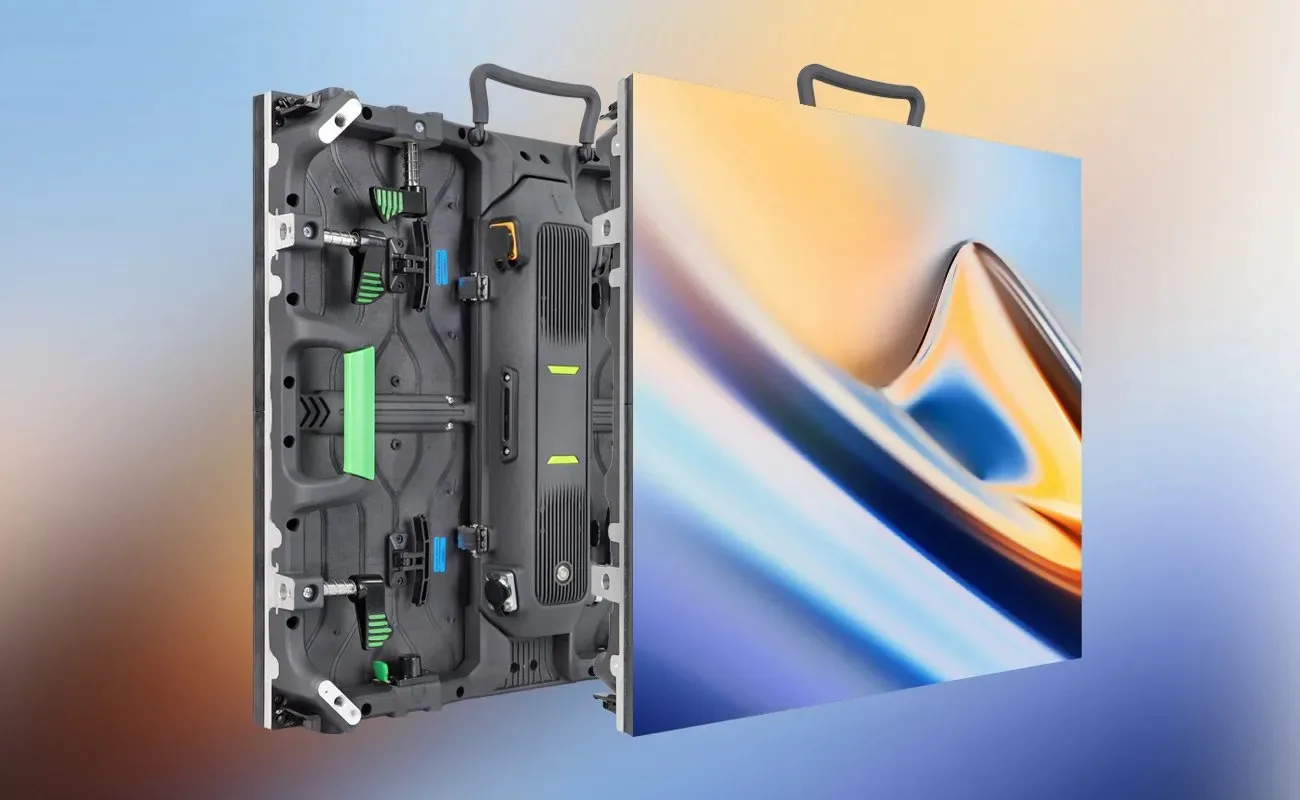

Our cabinet with ultra-thin design, removable back cover, can also share back cover with 1000H4 series,
High-precision curve lock for curved installation, LED corner protector, magnetic module, high waterproof

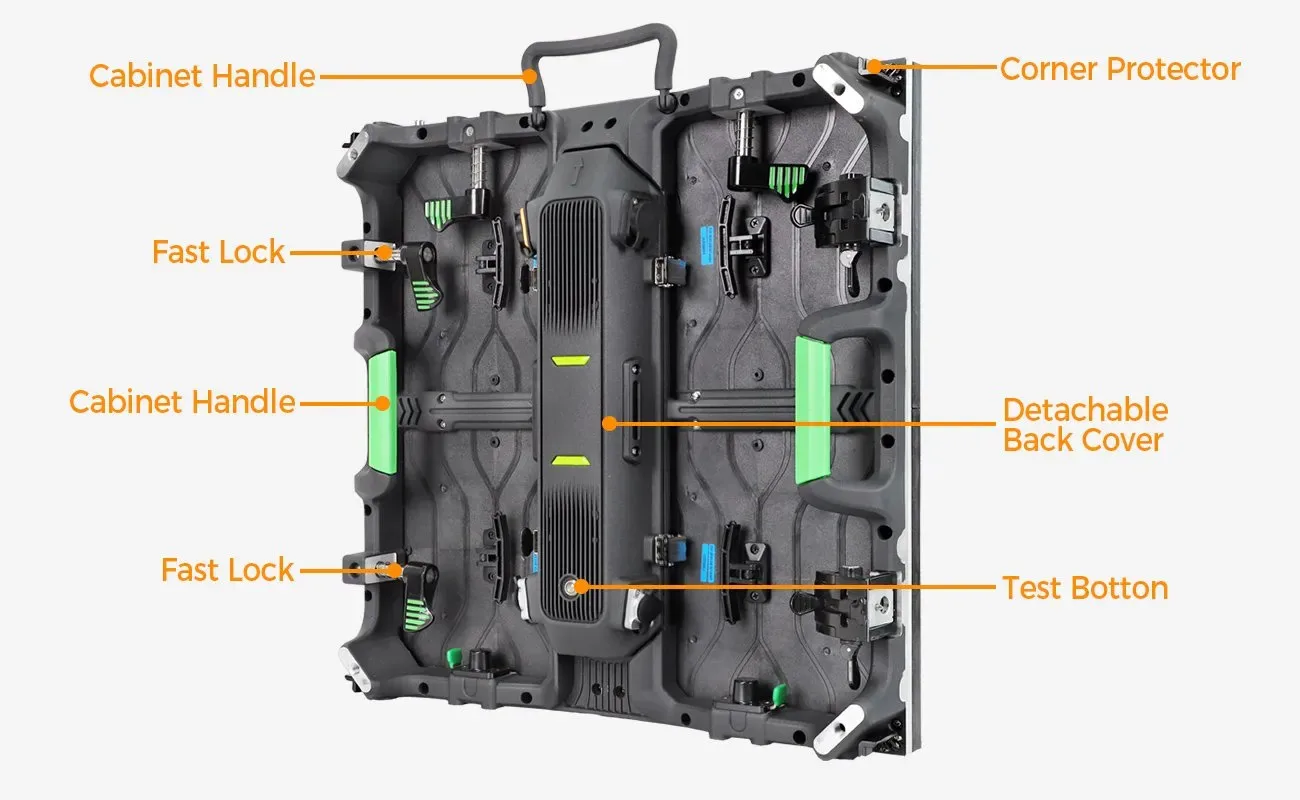

Perfect Cabinet Design
Excellent product came in all details from cabinet handle. cabinet fxied slot, fast lock,
magnet adsorption module, module installation knob, Power& signal connector, detachable power boxing, and more

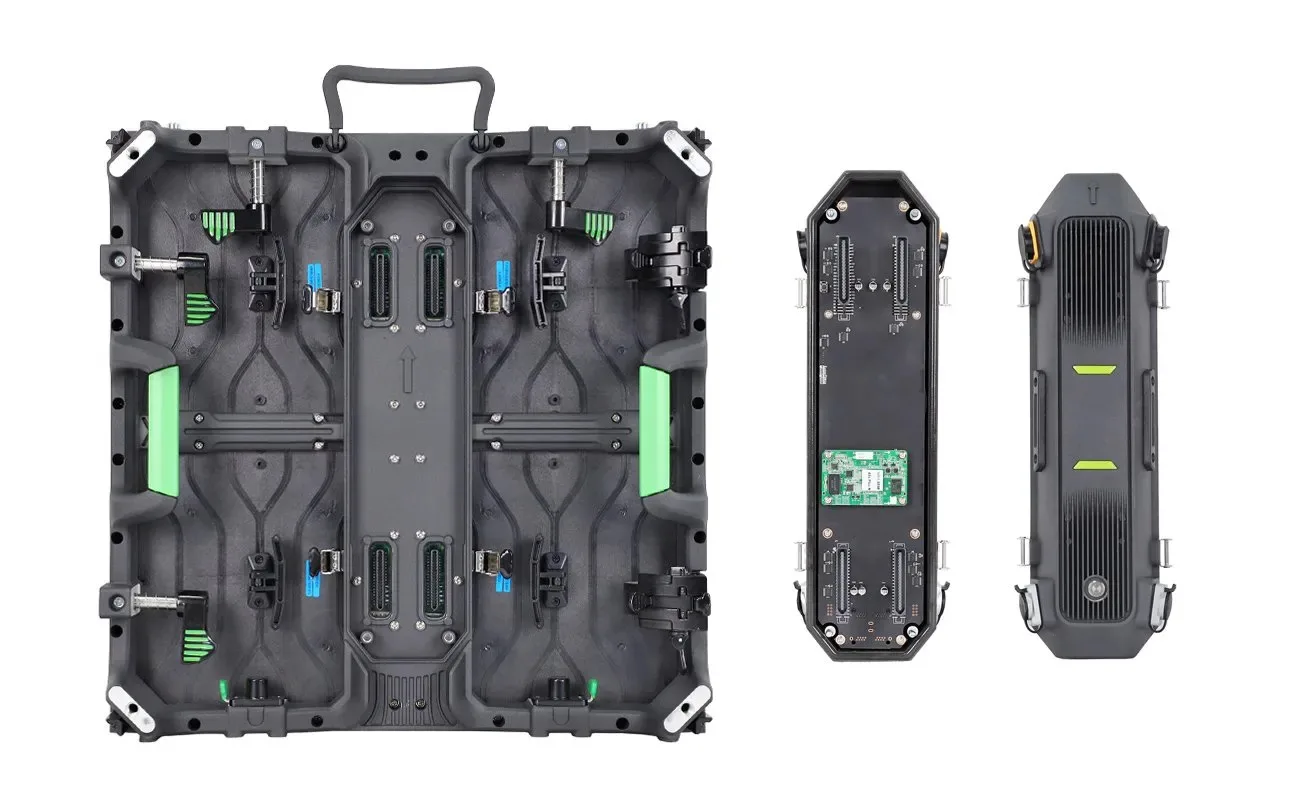

Detachable Back Cover
Hard Connection Design with detachable Power box and HUB board, High IP65 Waterproof with Double Sealing Rubber Ring,Quick Mounting of Buckles for assamble and disassamble of back cover.

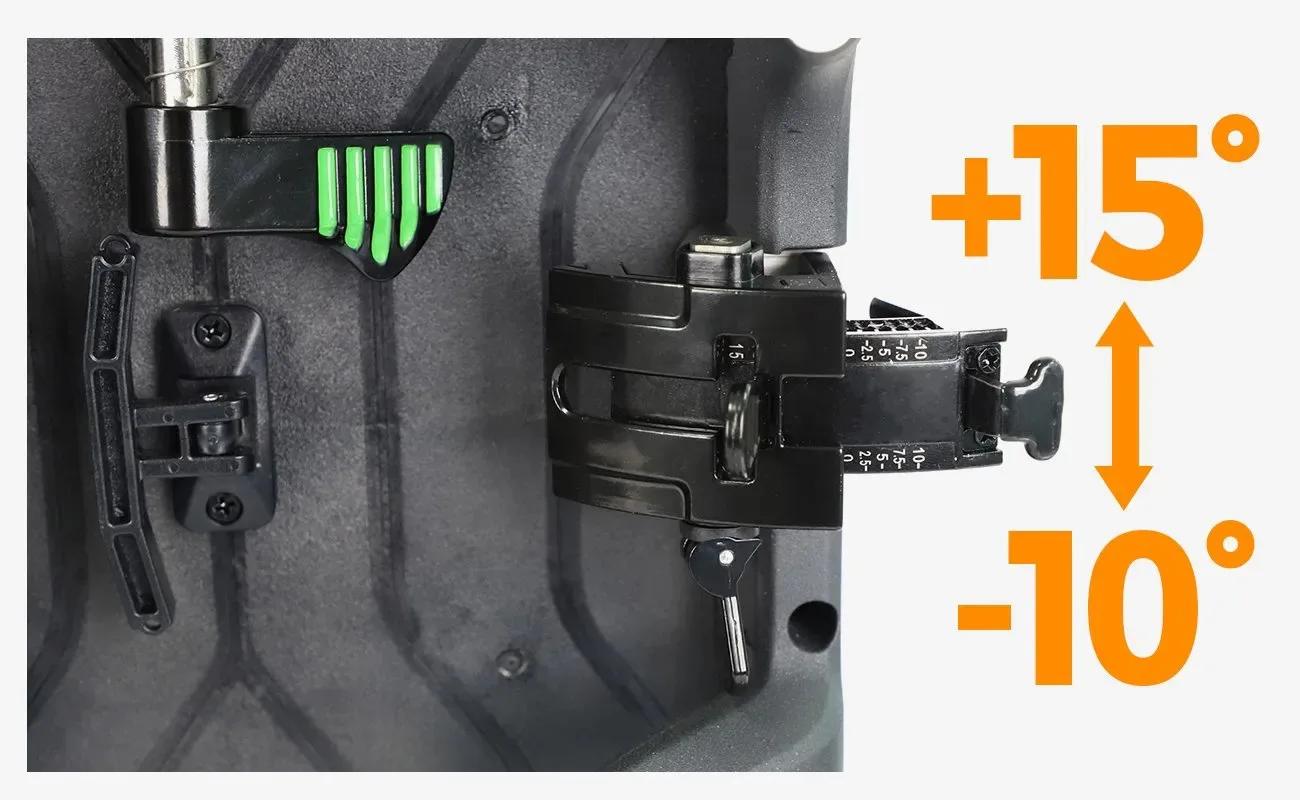

High Precision Curve Lock
Adopt high-precision curve lock design (-10° to +15°), rotation control, more accurate,
easy to use, and quickly adjust the degree of curve.

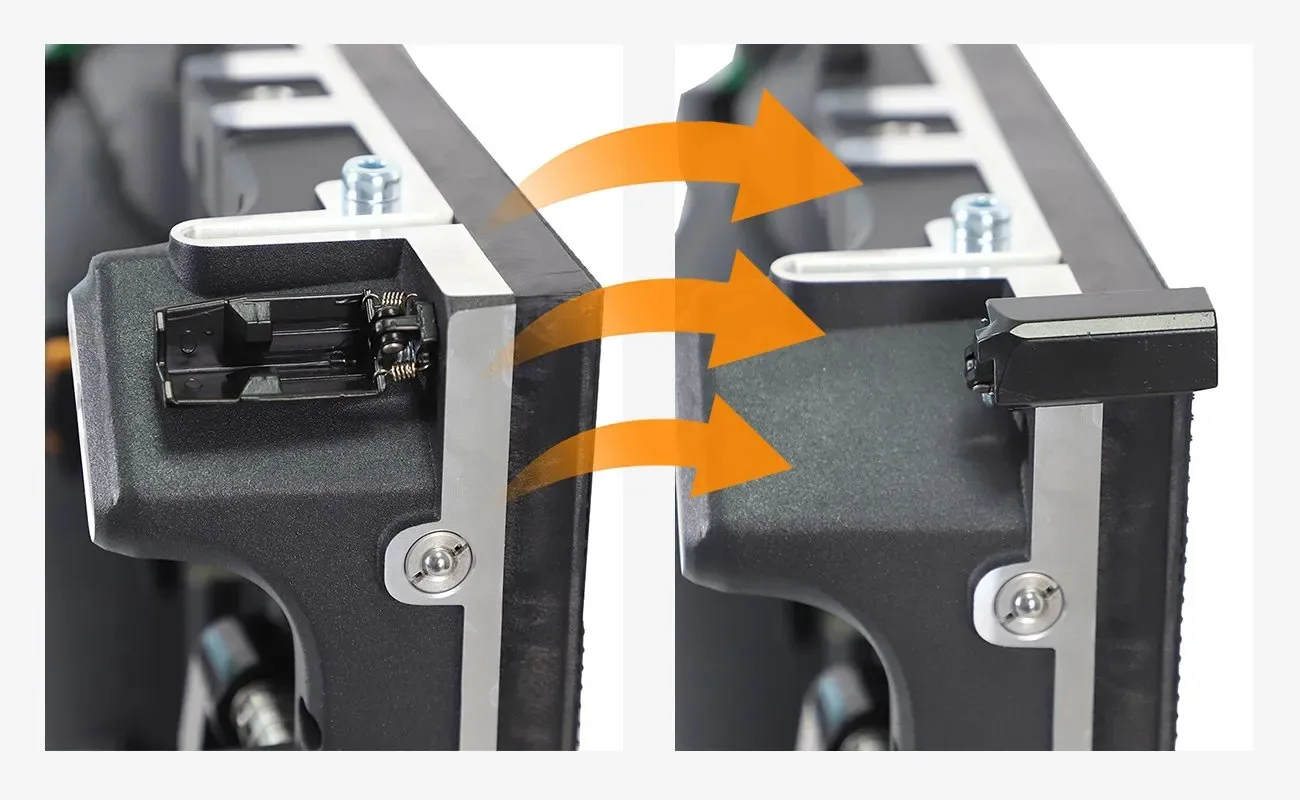

Corner Protector
The LED screen has four corners to prevent damage to the LED,Transportation, installation, operation,disassembly and assembly are more secure and easy to use.
Outdoor 500x500mm Rental LED Display | |
| Pixel Pitch (mm) | P3.91 | P4.81 | |
| Model | EA500H4-OP3.91 | EA500H4-OP4.81 | |
| Pixel Configuration | SMD1921 | SMD1921 | |
| Density (Pixels/㎡) | 65,536 | 43,264 | |
| Module Resolution (Pixel) | 64x64 | 52x52 | |
| Module Size (mm) | 250x250 | 250x250 | |
| Driving Mode (Duty) | 1/16 | 1/13 | |
| Cabinet Size (mm) | 500x500 | 500x500 | |
| Cabinet Weight (KG) | 7 | 7 | |
| Brightness (CD/㎡) | ≥6,000 | ≥6,000 | |
| Viewing Angle (°) | 120 | 120 | |
| Gray Grade (Bits) | 14 | 14 | |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | |
| Max. Power Consumption (W/㎡) | 720 | 560 | |
| Avg. Power Consumption (W/㎡) | 240 | 190 | |
| Frame Frequency (Hz) | ≥60 | ≥60 | |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | |
| Working Temperature (ºC) | -20～+60 | -20～+60 | |
| Lifetime (Hours) | 100,000 | 100,000 | |
| Protection Grade | IP65(front), IP54(rear) | IP65(front), IP54(rear) | |
Indoor 500x500mm Rental LED Display Parameter | |
| Pixel Pitch (mm) | P2.6 | P2.97 | P3.91 |
| Model | EA500H4-iP2.6 | EA500H4-iP2.97 | EA500H4-iP3.91 |
| Pixel Configuration | SMD1515 | SMD2121 | SMD2020 |
| Density (Pixels/㎡) | 147,928 | 112,896 | 65,536 |
| Module Resolution (Pixel) | 96x96 | 84x84 | 64x64 |
| Module Size (mm) | 250x250 | 250x250 | 250x250 |
| Driving Mode (Duty) | 1/32 | 1月28日 | 1月16日 |
| Cabinet Size (mm) | 500x500 | 500x500 | 500x500 |
| Cabinet Weight (KG) | 6.5 | 6.5 | 6.5 |
| Brightness (CD/㎡) | ≥1200 | ≥1,000 | ≥1,200 |
| Viewing Angle (°) | 120 | 120 | 120 |
| Gray Grade (Bits) | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 480 | 480 | 576 |
| Avg. Power Consumption (W/㎡) | 160 | 160 | 192 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP31 | IP31 | IP31 |
